Here's a progress update on the build: I've been working on the side panels for the audio system's power station hub. In this video, you'll see the process of constructing these parts in layers, assembling them like a puzzle, and then reinforcing them with fiberglass to create a single, solid component. The design allows for it to be systematically disassembled, with the capability to restore the car to its original specifications and weight if needed. Additionally, I'm using the SMD Fuse box to showcase part of the hub, providing a glimpse into the electrical management aspect of the build.

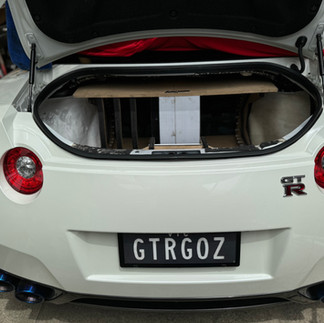

GTR R35 Car Audio Build - Universal Design for Any Car
I've been working on the side enclosures that connect to the main unit to create larger enclosures. Additionally, I've been experimenting with optical illusions for the #Zapco logo. Here's one design I'm considering:
Here's a progress update on the build:
I decided to go with Zapco DSP amps for their optical inputs. Wanted everything to be lightweight yet super strong, and designed so it could be taken apart and put back together in just a few hours. With all the gear, I had to pack it efficiently to still have some boot space left for trips. Opted for aerospace-grade construction because, hey, why not follow the best practices, right?
The amp rack design took a nod from the Gundam robots, keeping it real GTR style. Now, when you're into high-end car audio and start picking up engine noise, that's where those Zapco DSP amps shine. They've got a digital input which pairs perfectly with a hi-res head unit that has an optical output. This setup gives you the purest sound straight to your amps, ditching the traditional RCA cables.
I've Designed this port and named it the "Fibonacci 6th Order," which transcends traditional car audio setups and applies universally across car models. Here's what sets it apart:
Versatile Enclosure Behavior: This port design emulates the characteristics of various enclosures, from 4th order bandpass to 6th order, and even infinite baffle setups. This versatility means it can be adjusted to act like different types of enclosures, offering a range of sound profiles without the need for making multiple physical enclosures.
Lightweight and Robust: By using advanced materials and design, the enclosure is much lighter and stronger than standard options, enhancing the car's overall balance and performance without compromising on audio quality.
Space Efficiency: The port can extend significantly (up to 1 meter for a 12-inch woofer) while wrapping around the woofer. This innovative approach saves valuable space inside the enclosure, a common constraint in car audio builds where every inch counts.
Customizable Tuning: With the ability to adjust the X, Y, Z coordinates during the 3D printing phase, the port can be precisely tuned to the woofer's needs. This customization ensures the audio system resonates perfectly with the car's interior acoustics, providing an optimized sound experience.
This design not only maximizes space, strength, and lightness but also offers an unprecedented level of customization and versatility in sound tuning, making it a game-changer for audiophiles in any vehicle.
